Ekofires Oregon 1610 Inset Electric Fire Landscape
Ekofires Oregon 1610 Inset Electric Fire Landscape
Free UK Delivery
The eko 1610 landscape wall inset electric fire and features: 1.5kW variable heat output, flame-effect only (no heat), four flame intensity settings, thermostatic control, timer, and an exquisite LED flame picture tech. Operate the fire with either the remote control or buttons on the bottom right of the unit. It has a helpful LED display located in the top right hand corner of the window which displays the heat setting, flame cycle and sleep timer. It is completed with a one-piece black metal frame to creating contemporary finish.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below.
Installation note: Landscape wall insets require an opening built to certain specs in order to fit properly and safely. Within the housing frame a non-combustible shelf may be fitted to within 10 mm of the top edge of the fire frame. Combustible materials, such as wood, may be fitted to within 100mm of either side of the fireplace opening, providing the forward projection does not exceed 100mm.
Any combustible side walls must be at least 500 mm to the side of the radiant heat source.
Opening wall inset requirements:
Opening height: 403 – 410 mm Opening width: 860 – 880 mm Mounting depth: minimum of 150 mm Minimum distance from floor: 100 mm
Please note: the LED display is only shown when changing a function.

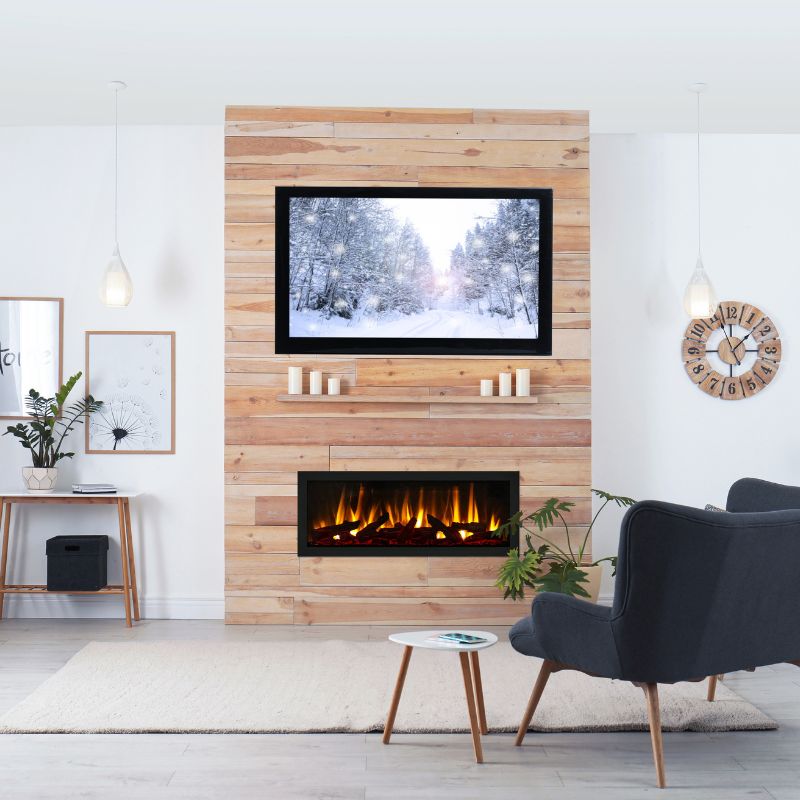

An additional benefit is that you can also position a TV above the fire as the fan heater is located at the front of the fire.
Further Details
This product comes with a 3-year guarantee
Specifications
Minimum Room Size | N/A |
---|---|
Fire Type | Landscape Inset LED Electric Fire |
Chimney/Flue Requirements | No chimney or flue required |
Efficiency | 100% |
Control Type | Front Manual Buttons & Remote Control |
Heat Input (Max/Min) Gross | 1.5kW / 0.75kW |
Heat Output (Max/Min) Gross | 1.5kW / 0.75kW |
Dimensions | See Technical Drawing Download |
Installation | Wall Inset |
Air Vent Required | N/A |
Safety | Thermal Trip Switch |
